LLT - LONG LIFE TECH
| CODICE | AH (20/H) | EN(A) | BASE | POLARITÀ | COPERCHIO | DIMENSIONI | SCHEDA TECNICA |
||
| L (mm) | P (mm) | H (mm) | |||||||
| V_L0 | 50 | 390 | B13 | DX | MF | 175 | 175 | 190 |
|
| V_L1 | 50 | 420 | B13 | DX | MF | 207 | 175 | 190 |
|
| V_L1+ | 55 | 480 | B13 | DX | MF | 207 | 175 | 190 |
|
| V_L1B | 50 | 420 | B13 | DX | MF | 207 | 175 | 175 |
|
| V_L1X | 50 | 420 | B13 | SX | MF | 207 | 175 | 190 |
|
| V_L2 | 60 | 550 | B13 | DX | MF | 242 | 175 | 190 |
|
| V_L2+ | 65 | 600 | B13 | DX | MF | 242 | 175 | 190 |
|
| V_L2B | 60 | 550 | B13 | DX | MF | 242 | 175 | 175 |
|
| V_L2X | 60 | 550 | B13 | SX | MF | 242 | 175 | 190 |
|
| V_L3 | 74 | 680 | B13 | DX | MF | 278 | 175 | 190 |
|
| V_L3+ | 80 | 720 | B13 | DX | MF | 278 | 175 | 190 |
|
| V_L3B | 74 | 680 | B13 | DX | MF | 278 | 175 | 175 |
|
| V_L3X | 74 | 680 | B13 | SX | MF | 278 | 175 | 190 |
|

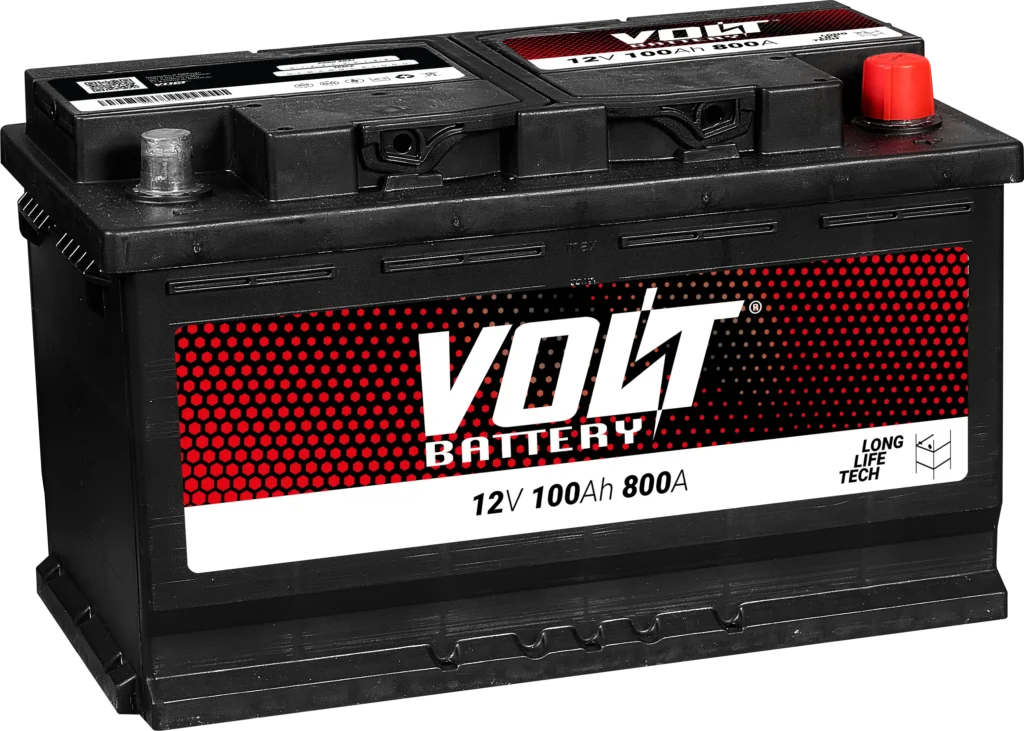

| V_L4 | 100 | 850 | B13 | DX | MF | 315 | 175 | 190 |
|
| V_L4B | 100 | 850 | B13 | DX | MF | 315 | 175 | 175 |
|
| V_L4X | 100 | 850 | B13 | SX | MF | 315 | 175 | 190 |
|
| V_L4+ | 100 | 1000 | B13 | DX | MF | 315 | 175 | 190 |
|
| V_L5 | 100 | 850 | B13 | DX | MF | 353 | 175 | 190 |
|
| V_L6 | 110 | 950 | B13 | DX | MF | 393 | 175 | 190 |
|
| V_B19 | 40 | 300 | B00 | DX | MF | 187 | 127 | 223 |
|
| V_B19X | 40 | 300 | B00 | SX | MF | 187 | 127 | 223 |
|
| V_B19T | 40 | 300 | B01 | DX | MF | 187 | 127 | 223 |
|
| V_B24 | 45 | 360 | B00 | DX | MF | 238 | 129 | 223 |
|
| V_B24X | 45 | 360 | B00 | SX | MF | 238 | 129 | 223 |
|
| V_D23 | 60 | 530 | B00 | DX | MF | 232 | 175 | 225 |
|
| V_D23X | 60 | 530 | B00 | SX | MF | 232 | 175 | 225 |
|
| V_D26 | 70 | 560 | B01 | DX | MF | 269 | 174 | 225 |
|
| V_D26X | 70 | 560 | B01 | SX | MF | 269 | 174 | 225 |
|
| V_D31 | 100 | 850 | B01 | DX | MF | 306 | 175 | 221 |
|
| V_D31X | 100 | 850 | B01 | SX | MF | 306 | 175 | 221 |
|
